RENAISSANCE ARTS ACADEMY – LOS ANGELES, CA
Waterproofing
Products used:
GUARDIANDECK™
FREEDOMTUFF™ 6160 PRIMER
FREEDOMTUFF™ 2202 POLYUREA
FREEDOMTUFF™ 4300 POLYURETHANE
Project description: A parking deck over occupied space is always a challenge to waterproof. This proved to be the case for the new building that renaissance arts school in la purchased. The parking deck had an asphalt overlay on top of a failing hot rubber liner. The school wanted to keep the asphalt finish for cars to drive on so the guardiandeck™ was installed 1st and the 380°f asphalt was applied over it.

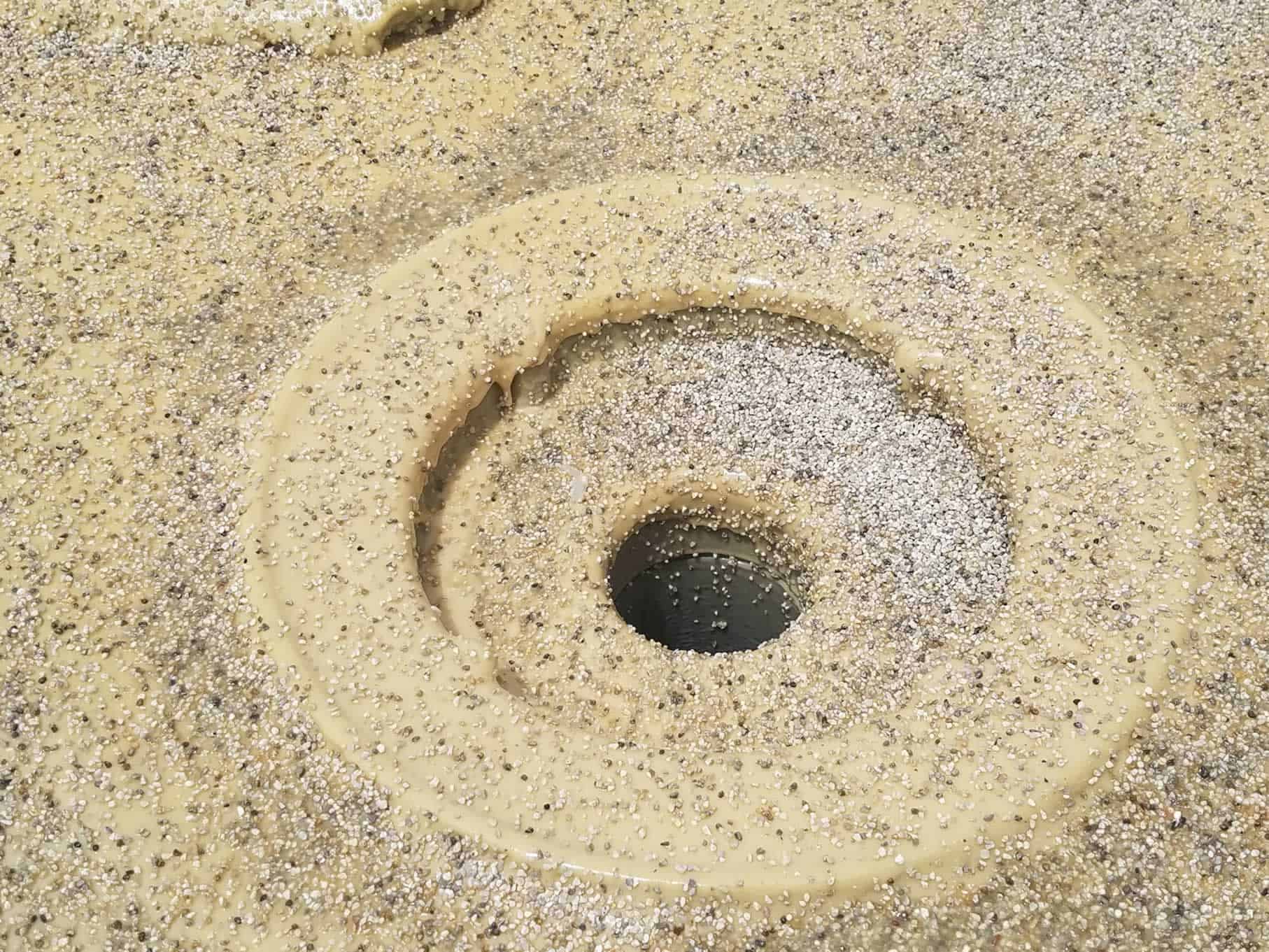

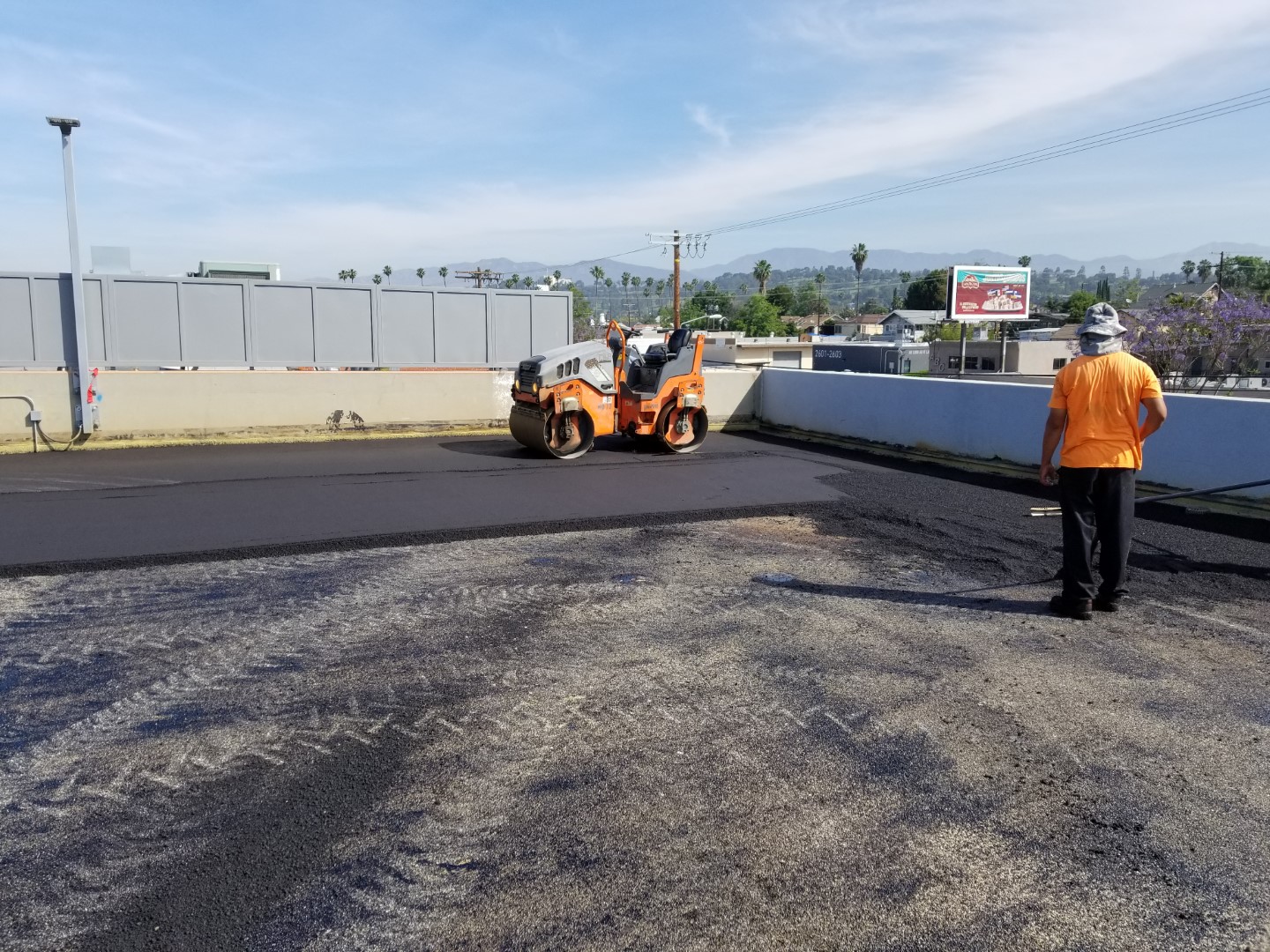

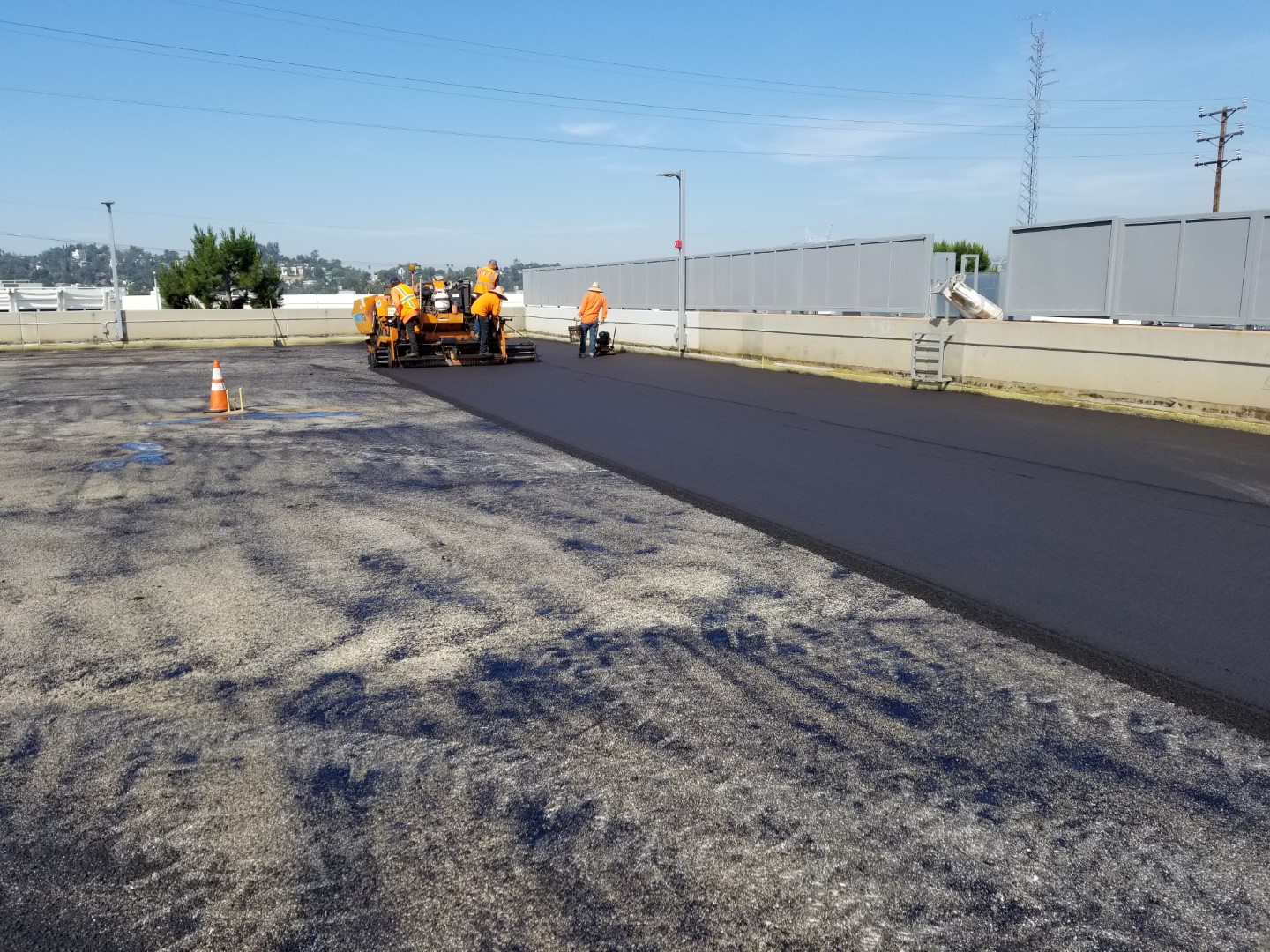

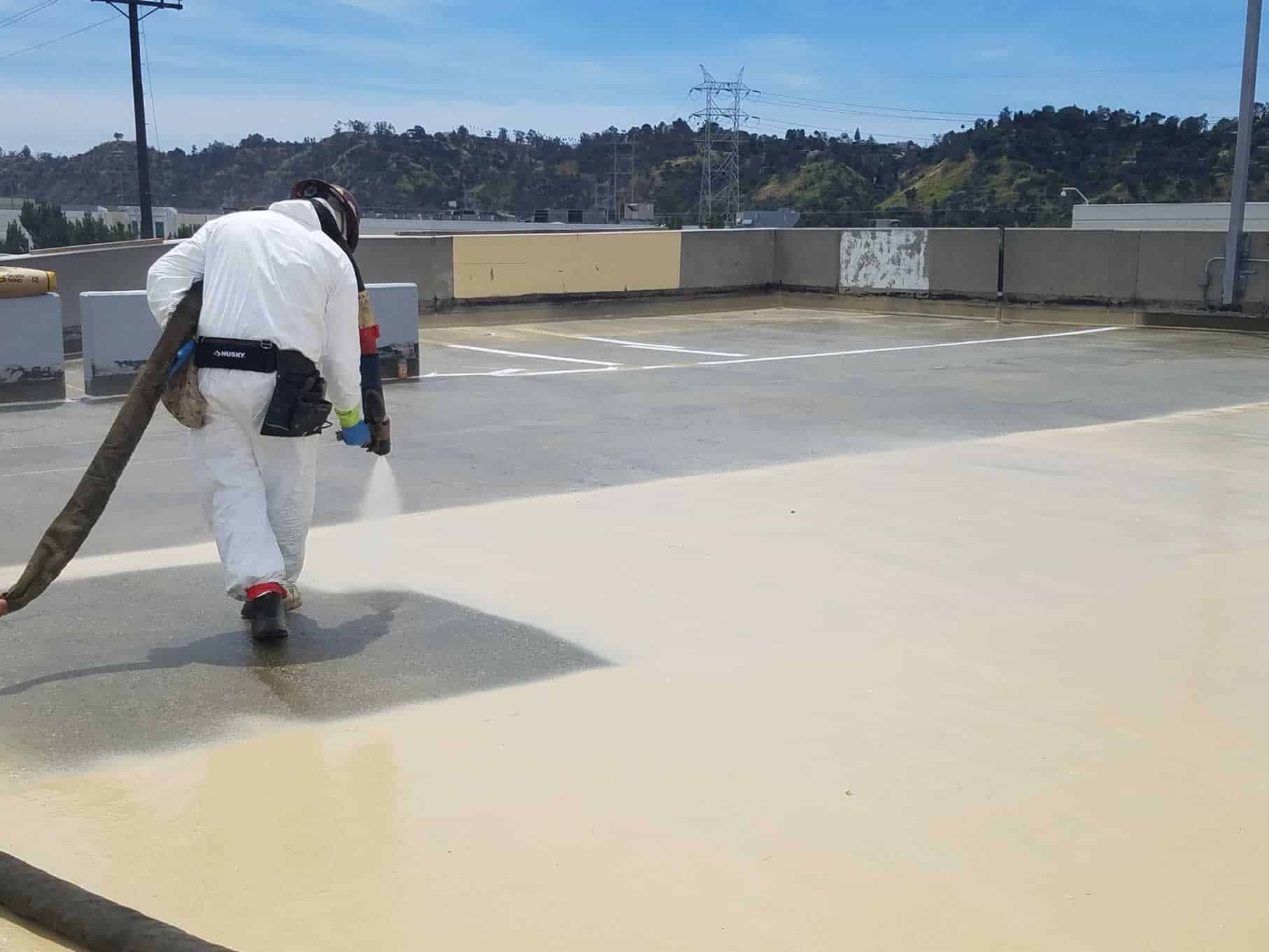

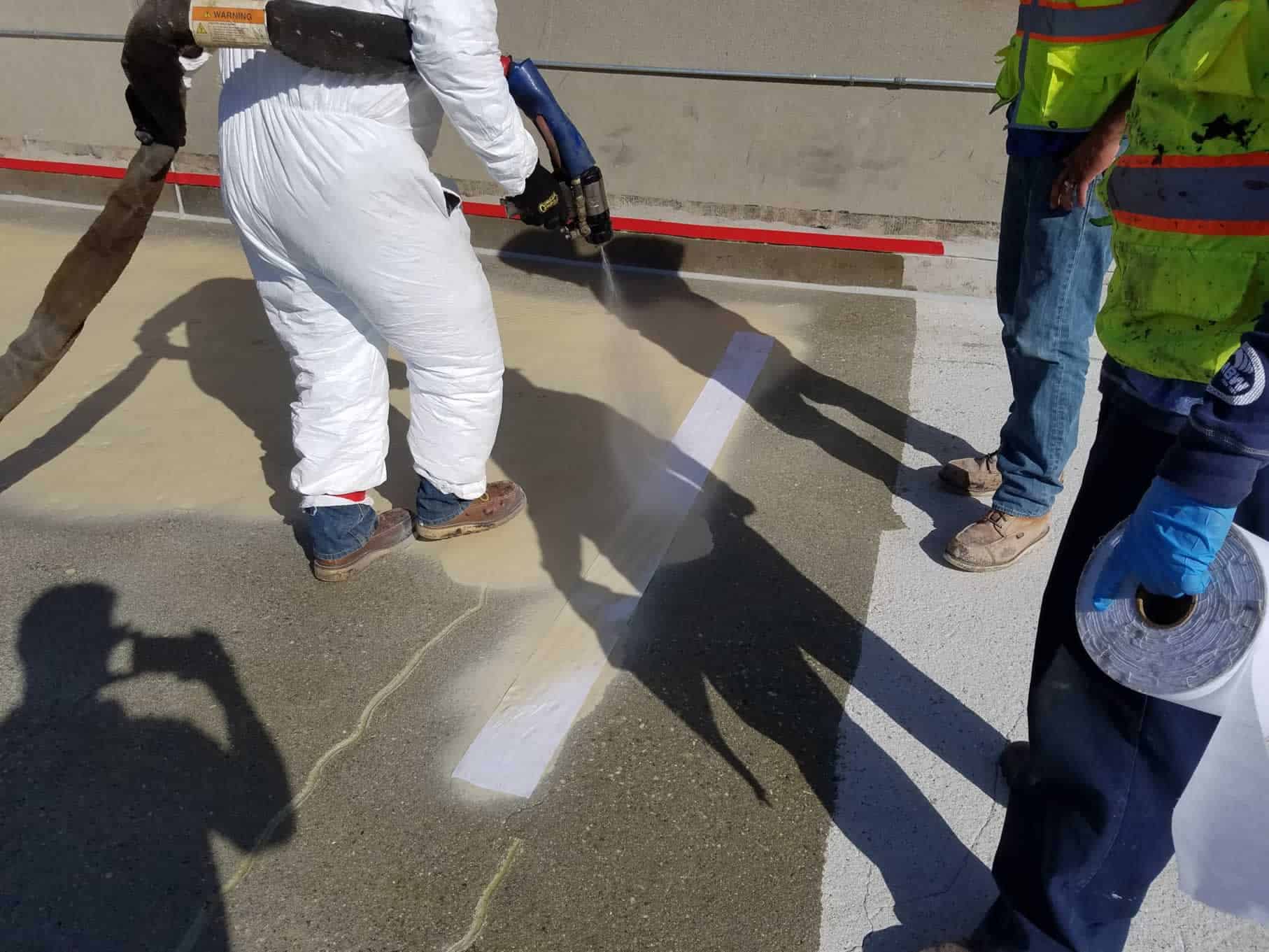

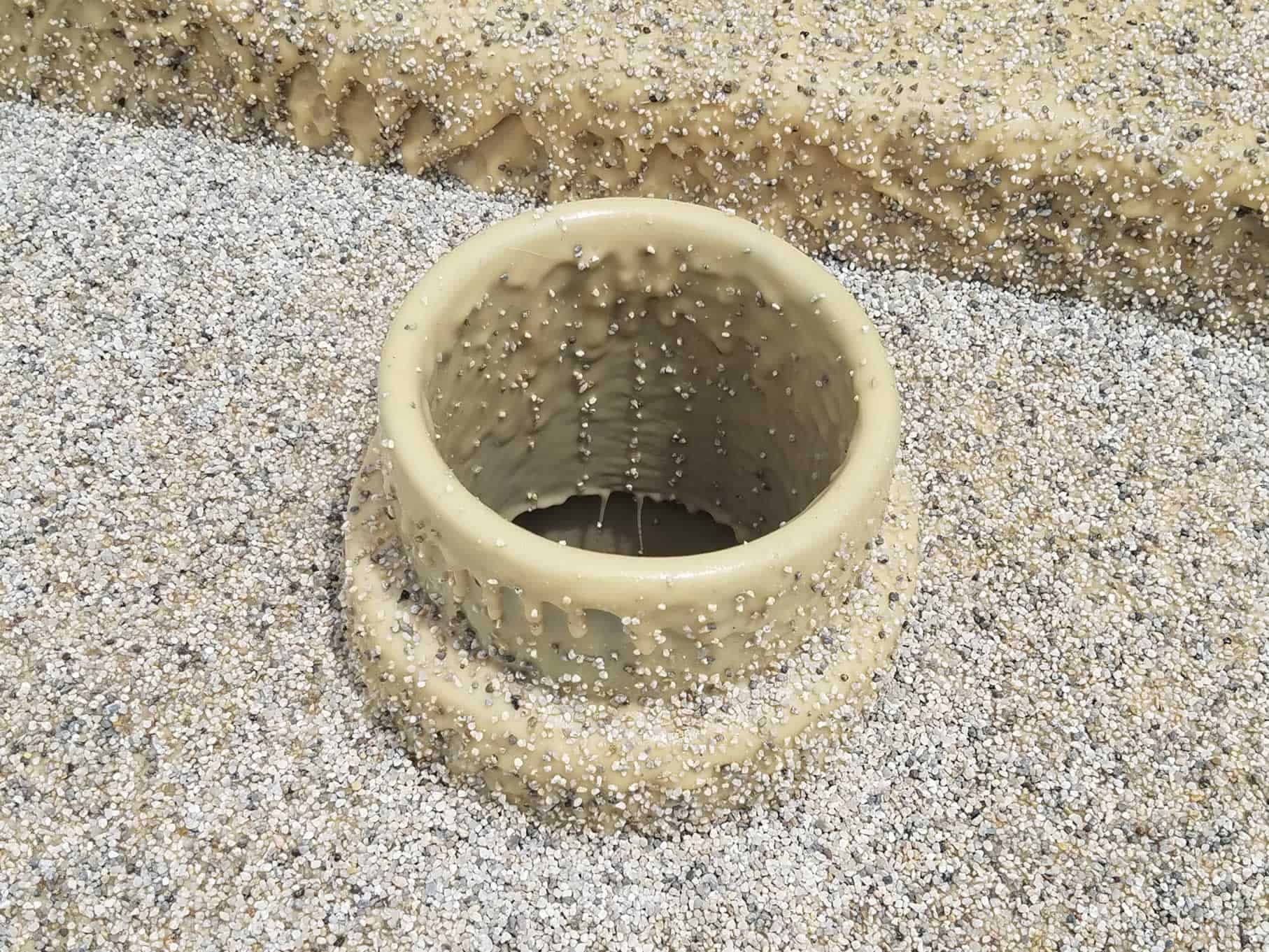

Application: The asphalt and hot tar system were removed. The concrete was shot blasted to a csp 4 – 5. Cracks were routed and filled with a 2k urethane. New drains and overflow drains were added. Ft-6160™ primer was applied at 5 – 7 mils and a light broadcast of 30 mesh sand was added. For cracks larger than 1/16” wide fabric was sprayed in place with 40 mils of ft-2202™ polyurea. Ft-2202™ polyurea was applied at 80 mils. Ft-4300™ polyurethane was applied at 16 mils and a 10 mesh sand was heavy broadcast as a mechanical key for the asphalt. The asphalt was installed the next day.
Gallery
The FreedomTuff® product line is a revelation of what Polyureas, Polyurethanes, Polyaspartics and Epoxies are about. When so many products have been “made” for maximum impact, at Freedom® Chemical Corporation we’ve been content to let our products speak quietly. No need to shout when you have something special to say.
Recent Case Studies & Applications
Wheelock Stadium
Client: Riverside Community College
Sub-Contractor: Innovative Painting & Waterproofing
Kaiser Permanente Baldwin Park
Contractor: Angelus Waterproofing
Job description: 32,000 sq.ft. reflection pond above occupied space
Fertizona – Buckeye, AZ
Contractor: Gamez Lining Systems – Carlos Gamez
Job description: Fertilizer offloading station – Containment
Equinox Fitness Club
Contractor: Mark Beamish Waterproofing
Job description: 22,000 sq.ft. Elevated deck over occupied space
Renaissance Arts Academy
Contractor: Mark Beamish Waterproofing
Job description: Parking Deck over occupied space
